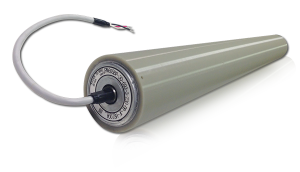

PM : Power Moller
605 : Outside Diameter (60.5 mm)
BP : High Power Three Phase
30 : Speed Code (Nominal Speed)
300 : Nominal Tube Length
3 : 3-Phase
200 : Voltage (200V)
- Outside Diameter : 60.5 mm
- Voltage : 3-Phase 200V 50/60 Hz
- Peripheral Velocity : 38.2/46.0 m/min (50/60Hz)
- Tangential Force : 46.6/37.3 N (50/60Hz)
- Starting Torque : 1.41/1.13 Nm (50/60Hz)
- No-Load Current : 0.11/0/09 A (50/60Hz)
- Starting Current : 0.32/0.31 A (50/60Hz)
- Input Power : 30.5/28.5 W (50/60Hz)
- Output Power : 15.2/14.5 W (50/60Hz)
- Tube Length : 300 mm
- Weight : 2.9 kg
- Mounting Hardware : A-200 Terminal Bracket
