| ange of product |

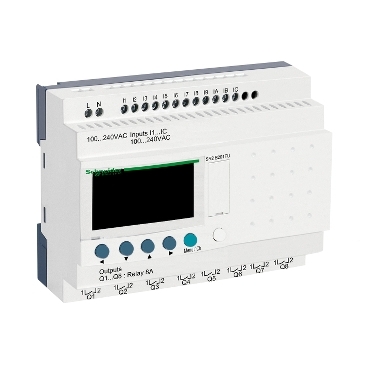

Zelio Logic |
| Product or component type |
Compact smart relay |
| local display |
With |
| Number or control scheme lines |
0…240 with ladder programming |
| 0…500 with FBD programming |
| Cycle time |
6…90 ms |
| Backup time |
10 years at 25 °C |
| Clock drift |
12 min/year at 0…55 °C |
| |
6 s/month at 25 °C |
| Checks |
Program memory on each power up |
| [Us] rated supply voltage |
100...240 V AC |
| Supply voltage limits |
85…264 V |
| Supply frequency |
50/60 Hz |
| Maximum supply current |
100 mA at 100 V (without extension) |
| |
50 mA at 240 V (without extension) |
| Power consumption in VA |
11 VA without extension |
| Isolation voltage |
1780 V |
| Protection type |
Against inversion of terminals (control instructions not executed) |
| Discrete input number |
12 |
| Discrete input voltage |
100...240 V AC |
| Discrete input current |
0.6 mA |
| Discrete input frequency |
57...63 Hz |
| |
47...53 Hz |
| Voltage state 1 guaranteed |
>= 79 V for discrete input |
| Voltage state 0 guaranteed |
<= 40 V for discrete input |
| Current state 1 guaranteed |
>= 0.17 mA (discrete input) |
| Current state 0 guaranteed |
<= 0.5 mA (discrete input) |
| Analogue input number |
0 |
| Input impedance |
350 kOhm for discrete input |
| Number of outputs |
8 relay |
| Output voltage limits |
5...30 V DC (relay output) |
| |
24...250 V AC |
| Contacts type and composition |
NO for relay output |
| Output thermal current |
8 A for all 8 outputs for relay output |
| Electrical durability |
AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 |
| |
AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1 |
| |
DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 |
| |
DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1 |
| Switching capacity in mA |
>= 10 mA at 12 V (relay output) |
| Operating rate in Hz |
0.1 Hz (at Ie) for relay output |
| |
10 Hz (no load) for relay output |
| Mechanical durability |
10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage |
4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Clock |
With |
| Response time |
50 ms with ladder programming (from state 0 to state 1) for discrete input |
| |
50 ms with ladder programming (from state 1 to state 0) for discrete input |
| |
50...255 ms with FBD programming (from state 0 to state 1) for discrete input |
| |
50...255 ms with FBD programming (from state 1 to state 0) for discrete input |
| |
10 ms (from state 0 to state 1) for relay output |
| |
5 ms (from state 1 to state 0) for relay output |
| Connections - terminals |
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid |
| |
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid |
| |
Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| |
Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid |
| |
Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque |
0.5 N.m |
| Overvoltage category |
III conforming to EN/IEC 60664-1 |
| Net weight |
0.38 kg |
| Immunity to microbreaks |
1 ms |
| Product certifications |
C-Tick |
| CSA |
| GL |
| GOST |
| UL |
| Standards |
EN/IEC 61000-4-6 level 3 |
| |
EN/IEC 61000-4-11 |
| |
EN/IEC 60068-2-27 Ea |
| |
EN/IEC 61000-4-5 |
| |
EN/IEC 60068-2-6 Fc |
| |
EN/IEC 61000-4-12 |
| |
EN/IEC 61000-4-2 level 3 |
| |
EN/IEC 61000-4-3 |
| |
EN/IEC 61000-4-4 level 3 |
| IP degree of protection |
IP20 (terminal block) conforming to IEC 60529 |
| |
IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic |
EMC directive conforming to EN/IEC 61000-6-2 |
| |
EMC directive conforming to EN/IEC 61000-6-3 |
| |
EMC directive conforming to EN/IEC 61000-6-4 |
| |
EMC directive conforming to EN/IEC 61131-2 zone B |
| |
Low voltage directive conforming to EN/IEC 61131-2 |
| Disturbance radiated/conducted |
Class B conforming to EN 55022-11 group 1 |
| Pollution degree |
2 conforming to EN/IEC 61131-2 |
| Ambient air temperature for operation |
-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| |
-20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage |
-40…70 °C |
| Operating altitude |
2000 m |
| Maximum altitude transport |
3048 m |
| Relative humidity |
95 % without condensation or dripping water |
