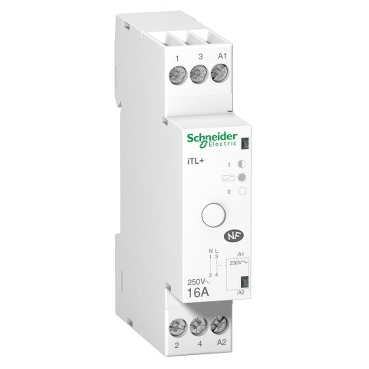

Schneider Electric A9C15032 Image impulse relay iTL+ - 1P+N - 1NO - 16A - coil 2

A9C15032

This Acti9 iTL+ is a silent modular impulse relay. This 1P+N device has 1 normally open contact. The rated current is 16A, 230VAC operating voltage and it operates with 230VAC control voltage. Electrical endurance goes up to 5000000 cycles for AC-21 or 5000000 cycles for AC-22. The switching frequency is 6 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. The iTL+ high-performance impulse relay allows remote control of single-phase circuits. It is designed for demanding applications. It is mainly used for lighting control applications. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The product weight is 70g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C. This product is compliant with IEC/EN 60669-2-2 standard.
