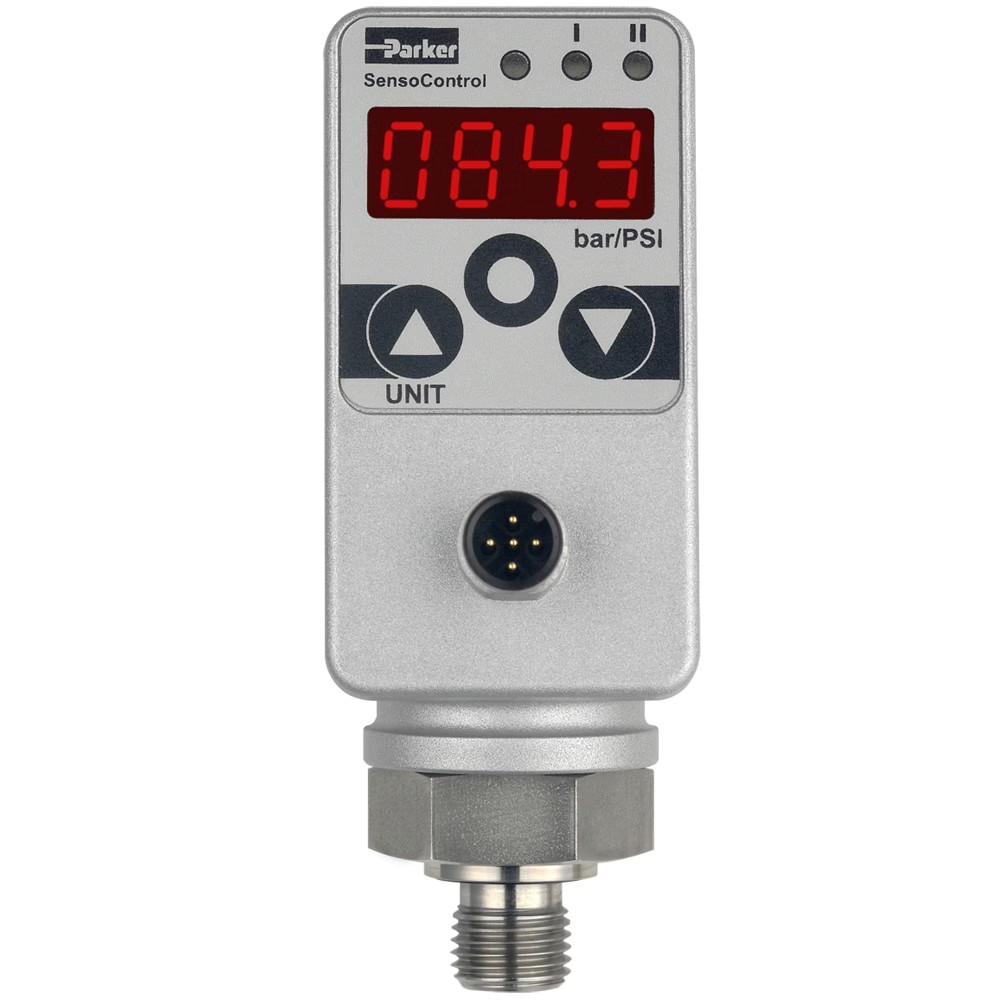

The PressureController combines the functions of a pressure switch, a pressure sensor and a display device.
Technical Specifications
- Switch Option:1 switching output
- Operating Pressure:0...250 bar
- Output Type:0 … 20 mA
- Port Type:BSPP outer thread
- Weight:Approx. 300 g
- Industry:Mobile
- Burst Pressure:1200 bar
- Brand:SensoControl
- Electrical Connection:Circular connector M12x1 4-pole
- Length:n.a
- Port Size:G 1/4" BSPP outer thread
- Application:Industrial applications
- Product Type:Pressure Controller
- Response Time:≤ 10 ms
- Technology:Pressure
- Height:n.a
- Division:HPCE
- Body Material:Painted zinc die cast Z 410
- Width:39,5 mm
- Product Style:Display sensor
- Specifications Met:CE
- Operating Temperature:-20...+85 °C (-4...185°F)
