| Range of product |

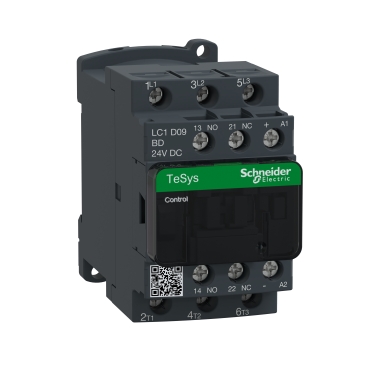

TeSys Deca |
| Product or component type |
Contactor |
| Device short name |
LC1D |
| Contactor application |
Motor control |
| |
Resistive load |
| Utilisation category |
AC-4 |
| |
AC-1 |
| |
AC-3 |
| |
AC-3e |
| Poles description |
3P |
| [Ue] rated operational voltage |
Power circuit: <= 690 V AC 25...400 Hz |
| |
Power circuit: <= 300 V DC |
| [Ie] rated operational current |
9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| |
25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| |
9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage |
24 V DC |
| Motor power kW |
2.2 kW at 220...230 V AC 50/60 Hz (AC-3) |
| |
4 kW at 380...400 V AC 50/60 Hz (AC-3) |
| |
4 kW at 415...440 V AC 50/60 Hz (AC-3) |
| |
5.5 kW at 500 V AC 50/60 Hz (AC-3) |
| |
5.5 kW at 660...690 V AC 50/60 Hz (AC-3) |
| |
2.2 kW at 400 V AC 50/60 Hz (AC-4) |
| |
2.2 kW at 220...230 V AC 50/60 Hz (AC-3e) |
| |
4 kW at 380...400 V AC 50/60 Hz (AC-3e) |
| |
4 kW at 415...440 V AC 50/60 Hz (AC-3e) |
| |
5.5 kW at 500 V AC 50/60 Hz (AC-3e) |
| |
5.5 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Motor power hp |
1 hp at 230/240 V AC 50/60 Hz for 1 phase motors |
| |
2 hp at 200/208 V AC 50/60 Hz for 3 phases motors |
| |
2 hp at 230/240 V AC 50/60 Hz for 3 phases motors |
| |
5 hp at 460/480 V AC 50/60 Hz for 3 phases motors |
| |
7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| |
0.33 hp at 115 V AC 50/60 Hz for 1 phase motors |
| Compatibility code |
LC1D |
| Pole contact composition |
3 NO |
| Contact compatibility |
M4 |
| Protective cover |
With |
| [Ith] conventional free air thermal current |
25 A (at 60 °C) for power circuit |
| |
10 A (at 60 °C) for signalling circuit |
| Irms rated making capacity |
250 A at 440 V for power circuit conforming to IEC 60947 |
| |
140 A AC for signalling circuit conforming to IEC 60947-5-1 |
| |
250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity |
250 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current |
105 A 40 °C - 10 s for power circuit |
| |
210 A 40 °C - 1 s for power circuit |
| |
30 A 40 °C - 10 min for power circuit |
| |
61 A 40 °C - 1 min for power circuit |
| |
100 A - 1 s for signalling circuit |
| |
120 A - 500 ms for signalling circuit |
| |
140 A - 100 ms for signalling circuit |
| Associated fuse rating |
10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| |
25 A gG at <= 690 V coordination type 1 for power circuit |
| |
20 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance |
2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole |
1.56 W AC-1 |
| |
0.2 W AC-3 |
| |
0.2 W AC-3e |
| [Ui] rated insulation voltage |
Power circuit: 690 V conforming to IEC 60947-4-1 |
| |
Power circuit: 600 V CSA certified |
| |
Power circuit: 600 V UL certified |
| |
Signalling circuit: 690 V conforming to IEC 60947-1 |
| |
Signalling circuit: 600 V CSA certified |
| |
Signalling circuit: 600 V UL certified |
| Overvoltage category |
III |
| Pollution degree |
3 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947 |
| Safety reliability level |
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 |
| |
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability |
30 Mcycles |
| Electrical durability |
0.6 Mcycles 25 A AC-1 at Ue <= 440 V |
| |
2 Mcycles 9 A AC-3 at Ue <= 440 V |
| |
2 Mcycles 9 A AC-3e at Ue <= 440 V |
| Control circuit type |
DC standard |
| Coil technology |
Built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits |
0.1...0.25 Uc (-40…70 °C):drop-out DC |
| |
0.7...1.25 Uc (-40…60 °C):operational DC |
| |
1...1.25 Uc (60…70 °C):operational DC |
| Inrush power in W |
5.4 W (at 20 °C) |
| Hold-in power consumption in W |
5.4 W at 20 °C |
| Operating time |
53.55...72.45 ms closing |
| |
16...24 ms opening |
| Time constant |
28 ms |
| Maximum operating rate |
3600 cyc/h 60 °C |
| Connections - terminals |
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end |
| |
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end |
| |
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end |
| |
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end |
| |
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end |
| |
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end |
| |
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end |
| |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end |
| |
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end |
| |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end |
| |
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| Tightening torque |
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| |
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| |
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| |
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| |
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| |
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Auxiliary contact composition |
1 NO + 1 NC |
| Auxiliary contacts type |
Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 |
| |
type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency |
25...400 Hz |
| Minimum switching voltage |
17 V for signalling circuit |
| Minimum switching current |
5 mA for signalling circuit |
| Insulation resistance |
> 10 MOhm for signalling circuit |
| Non-overlap time |
1.5 ms on de-energisation between NC and NO contact |
| |
1.5 ms on energisation between NC and NO contact |
| Mounting support |
Plate |
| |
Rail |
| Standards |
CSA C22.2 No 14 |
| |
EN 60947-4-1 |
| |
EN 60947-5-1 |
| |
IEC 60947-4-1 |
| |
IEC 60947-5-1 |
| |
UL 508 |
| |
IEC 60335-1 |
| Product certifications |
LROS (Lloyds register of shipping) |
| |
CSA |
| |
UL |
| |
GOST |
| |
DNV |
| |
CCC |
| |
GL |
| |
BV |
| |
RINA |
| |
UKCA |
| IP degree of protection |
IP20 front face conforming to IEC 60529 |
| Protective treatment |
TH conforming to IEC 60068-2-30 |
| Climatic withstand |
Conforming to IACS E10 exposure to damp heat |
| |
conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device |
-40…60 °C |
| |
60…70 °C with derating |
| Operating altitude |
0...3000 m |
| Fire resistance |
850 °C conforming to IEC 60695-2-1 |
| Flame retardance |
V1 conforming to UL 94 |
| Mechanical robustness |
Vibrations contactor open (2 Gn, 5...300 Hz) |
| |
Vibrations contactor closed (4 Gn, 5...300 Hz) |
| |
Shocks contactor open (10 Gn for 11 ms) |
| |
Shocks contactor closed (15 Gn for 11 ms) |
| Height |
77 mm |
| Width |
45 mm |
| Depth |
95 mm |
| Net weight |
0.48 kg |
