| Technology |

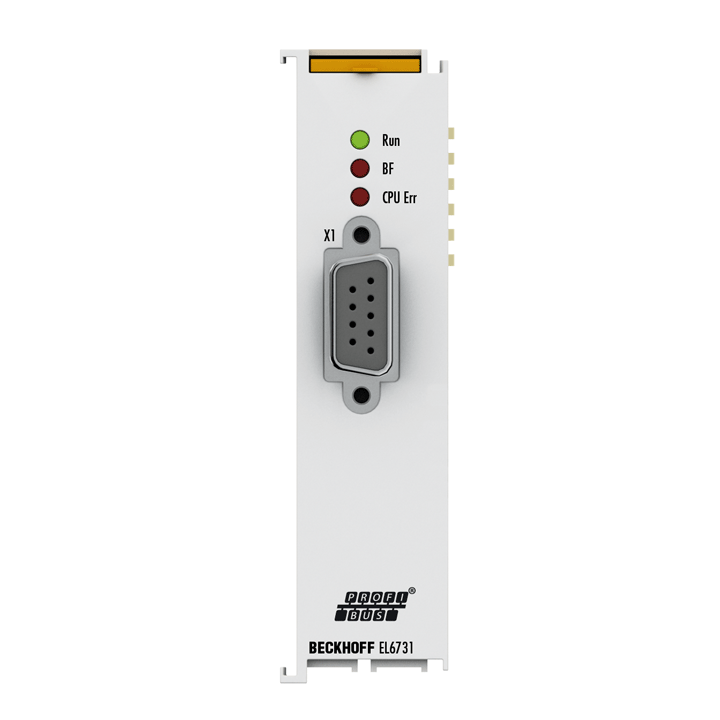

PROFIBUS master/slave terminal |
| Cycle time |
differing DP cycle times per slave are possible using the CDL concept |
| Fieldbus |
PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) |
| Number of fieldbus channels |
1 |
| Data transfer rates |
9.6 kbaud…12 Mbaud |
| Interfaces |
1 x D-sub socket, 9-pin, galvanically decoupled |
| Bus device |
max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave |
| Hardware diagnostics |
status LEDs |
| Distributed clocks |
yes |
| Bit width in the process image |
total max.: 1.4 kbyte input and 1.4 kbyte output data |
| Current consumption power contacts |
– |
| Current consumption E-bus |
typ. 200 mA |
| Weight |
approx. 70 g |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| Relative humidity |
95 %, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. |
IP20/variable |
| Approvals/markings |
CE, UL, ATEX, IECEx |
| Ex marking |
ATEX: |
| II 3 G Ex nA IIC T4 Gc |
| IECEx: |
| Ex ec IIC T4 Gc |
