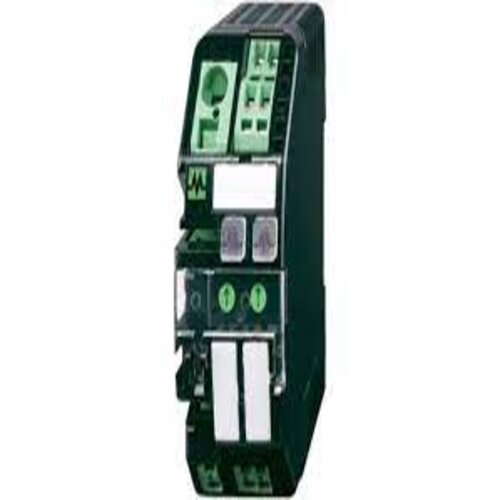

MICO electronic circuit protection, 2 CHANNELS
MICO ELEC AUX CIRCUIT, 2 CHANNELS IN: 24VDC OUT: 24V/1-2-3-4ADC
| Connection | Spring clamp terminals |
|---|---|
| Input terminals | 1× 16 mm² |
| Output terminals | per output 1× 4 mm² |
| Alarm terminals | 2.5 mm² |
| Bridging concept | one side, with spring clamp terminals or bridge set (max. 40 A) |
| Mounting method | DIN-rail mountable TH35 (EN 60715) |
| Dimensions H×W×D | 90×36×80 mm |
| Temperature range | 0...+55 °C (storage temperature -40...+80 °C) |
Output
| Current adjustment | 1 A, 2 A, 3 A, 4 A, by countersinked rotary switch, sealed |
|---|---|
| Inrush capacity | max. 20 mF (per channel) |
Input
| Operating voltage | 24 V DC (18...30 V DC) |
|---|
Control inputs
| Input voltage (ON) | 10...30 V DC |
|---|---|
| Impulse length (ON) | min. 20 ms |
Control outputs
| Group alarm output | potential free 30 V AC/DC, 100 mA |
|---|
