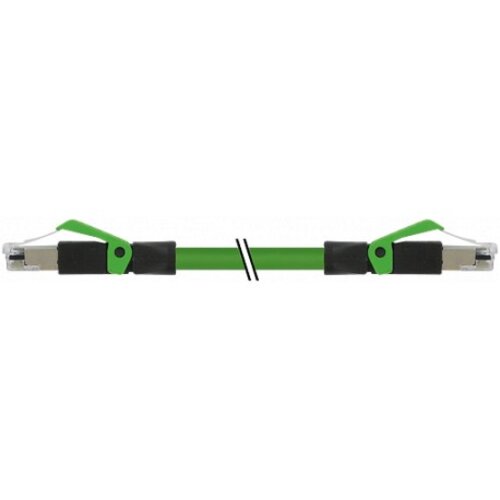

RJ45 male 0° / RJ45 male 0° Ethernet PUR 2x2xAWG22 shielded green UL/CSA+drag chain 20m
Technical Data
| Operating voltage | max. 60 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Rated surge voltage | 1.0 kV |
| Operating current per contact | max. 1.5 A (20 °C) |
| Material group | IEC 60664-1, category I |
| No. of poles | 4 |
| Transfer parameters | CAT5e, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| LED display | no |
| Locking of ports | Snap-in connector |
| Protection | IP20 |
| Locking material | PA |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | without |
General data
| Mounting method | inserted |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C, depending on cable quality |
