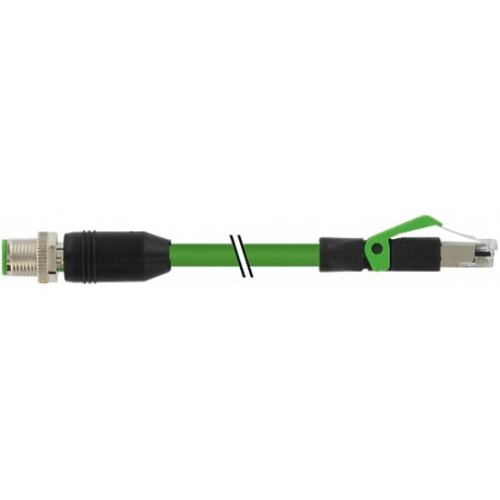

M12 male 0° / RJ45 male 0° Ethernet PUR 2x2xAWG22 shielded green UL/CSA + drag chain 12,5m
Technical Data
| Operating voltage | max. 60 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Rated surge voltage | 1.0 kV |
| Operating current per contact | max. 1.5 A (20 °C) |
| Material group | IEC 60664-1, category I |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW13) |
| Protection | IP67 (M12) - IP20 (RJ45) |
| Locking material | Zinc die casting, matte nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | without |
General data
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C, depending on cable quality |
