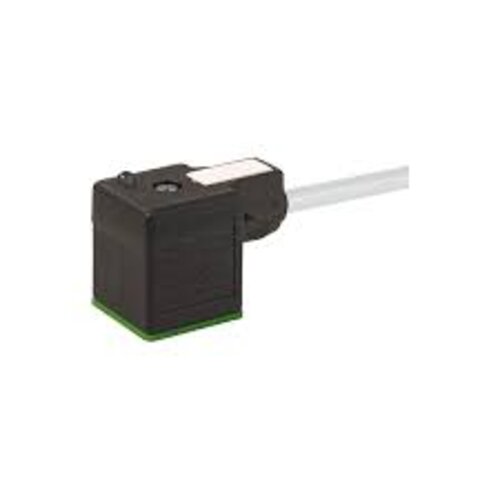

MSUD valve plug form A 18mm with cable PVC 3X0.75 gray, 5m
Technical Data
| Operating voltage | 24 V AC ±20% / DC ±25% |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Current consumption | max. 15 mA |
| Material group | IEC 60664-1, category I |
| Switch off peak | max. 55 V |
| Switch off delay time | max. 20 ms |
| LED display | yellow |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Steel (galvanized) |
| Material | PBT |
| Housing | Black plastic (gray on request) |
| Additional suppressor | Diode/Z-Diode |
General data
| Pollution Degree | 3 |
|---|---|
| Material (gasket) | PUR |
| Temperature range | -25...+85 °C, depending on cable quality |
